Solar Components

Solar Canopy and Ground Mount Racking Components

MetalWorks is a Georgia-based steel fabricator that provides Cee channels and Zee purlins, gutters, water management, and custom components for use in solar ground mount and solar canopy installations.

MetalWorks Bradbury QTR Purlin and Channel Line

MetalWorks new Bradbury QTR punching & roll forming line produces structural components in a variety of shapes, thicknesses, and grades. The equipment has the ability to punch holes, slots, and notches in-line.

Example Shapes

Features

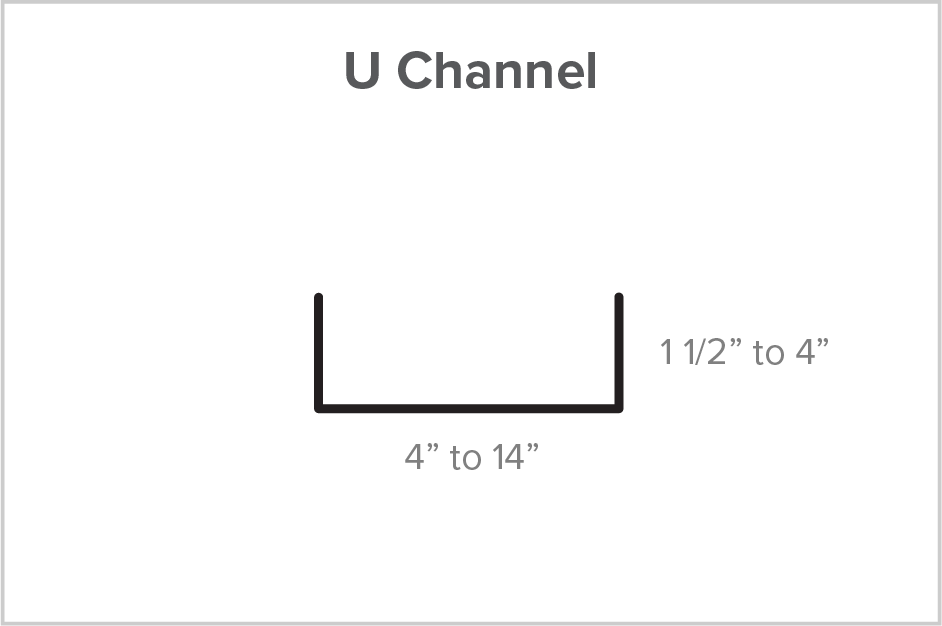

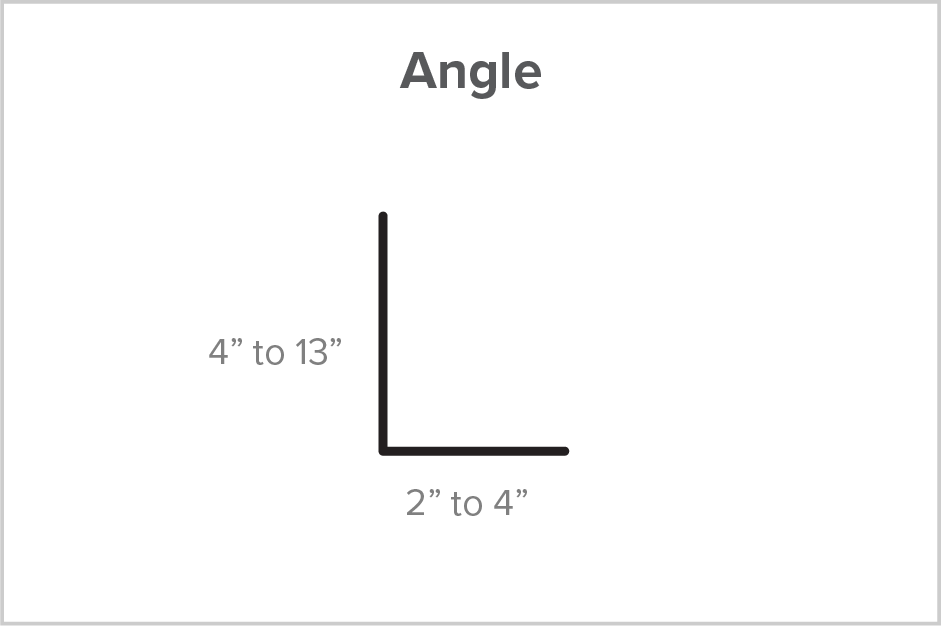

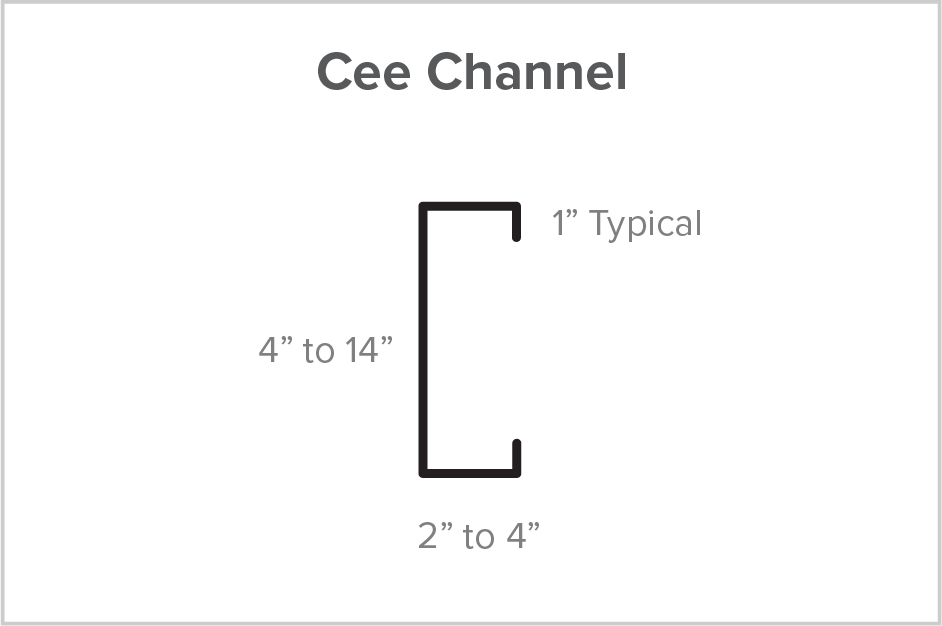

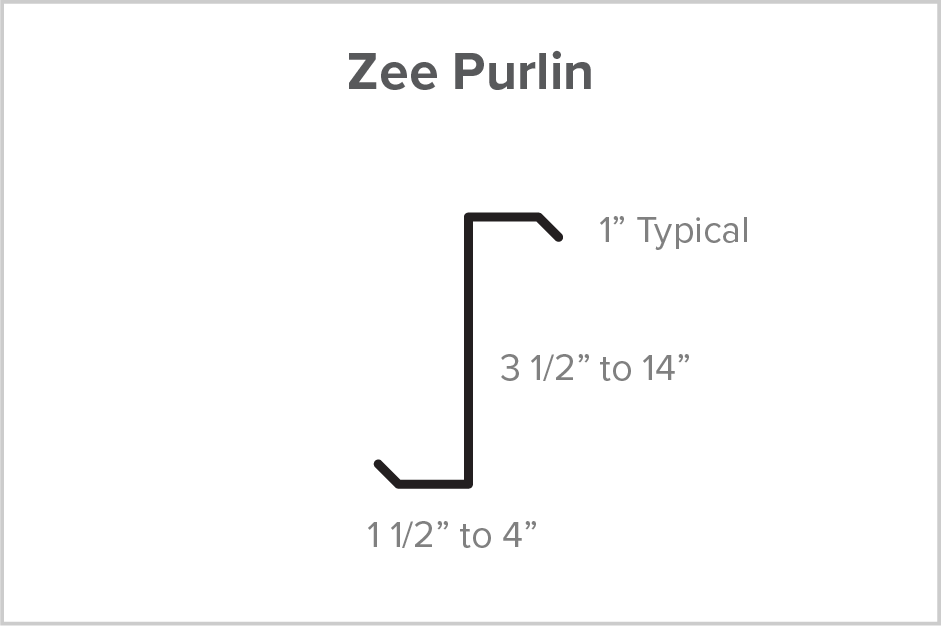

Can rollform Cee channel, Zee purlin,U channel, and Angle shapes
Galvanized G90 to G235 metal ingrades 33, 40, 55, or 80
In-line punching of holes, slots,and notches is available

SUPPORTED THICKNESSES

10G (0.135)
12G (0.100)
14G (0.075)
16G (0.060)
18G (0.048)

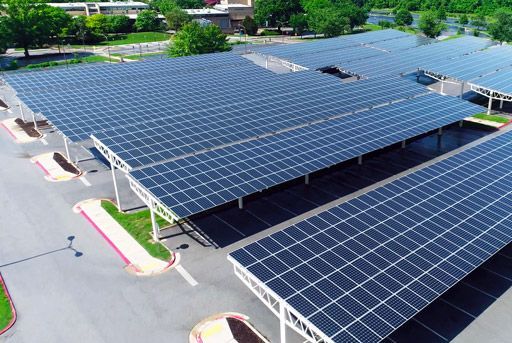

Solar Canopy Solutions

Cee channel and Zee purlins

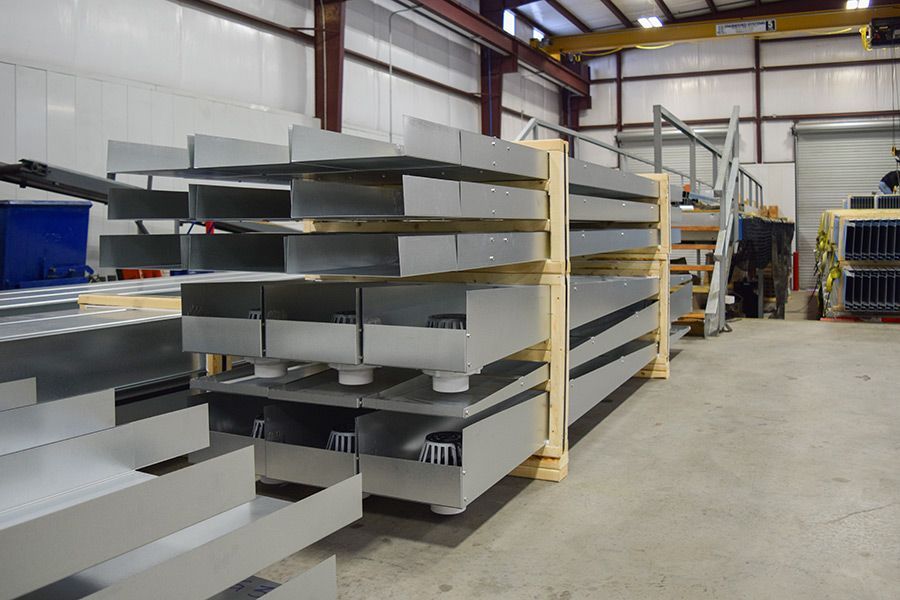

Complete gutter and water management systems
20ga to 10ga thickness
Adjustable hole patterns in webb, flange, and return lips
Custom shapes and components are available

Ground Mount Racking Components

Cee channel posts and truss
Zee purlins
20ga to 10ga thickness
Adjustable hole patterns in web, flange, and return lips
Custom shapes and components are available

Canopy and Roof Panels

Standing seam roof and soffit panels
Sizes: 3” x 16” or 3” x 12”
Available in standard configuration or Snap Lock
24ga to 20ga thickness
Lengths up to 60’
Galvanized, painted, and printed options are available

Additional Capabilities

Jorns folder – 14GA x 32’ long for special shapes
Thalmann double folder – 16GA x 32’ long for special shapes
Cincinnati 175 ton press brake for heavy gauge shapes
1/4” accurate shear – 12’ long
50 ton 5’ long Safan E-brake for small shapes
30 ton Euromac turret for special hole requirements

For pricing or information, contact Mate Fioravanti at 201-218-7100 | matefioravanti@metal-works.net
